Abosn mobile outrigger pads can be used not only as crane leg pads, but also the trailer plates, sleeper of heavy machinery track mats of heavy truck. The multi-function makes our outrigger pads popular in the world market, because we can produce all the outrigger pads according to customers' reasonable ideas
mobie crane outrigger pads is made of virgin UHMWPE plastic sheet or black recycled uhmwpe .
mobile crane outrigger pads have many colors for customer selecting , popular colors , black , green , red , multicolored recycled plastic crane outrigger pads ...
Abosn mobile outrigger pads key features :
1. very flat on the surface
2. The thickness tolerance is +2 -0,some made according to your requirements.
3. The color is pure and any color can be made by us.
4. We can give you an accurate size of HDPE Sheet with advanced machine.
5. Different shaped HDPE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant, anti-static and with other characters.
Abosn mobile outrigger pads size as below :
Dimensions (mm) Square | Weight(Kg) | Vertical Jack Capacity( tonne ) | Crane Capacity ( tonne) |
400X400X40 | 6.3 | 10 | 12 |
500X500X40 | 9.9 | 12 | 15 |
600X600X40 | 14.2 | 20 | 25 |
700X700X40 | 19.4 | 22 | 30 |
800X800X40 | 25.3 | 25 | 30 |
1000X1000X40 | 39.2 | 30 | 35 |
400X400X50 | 8 | 11 | 15 |
500X500X50 | 12.2 | 15 | 18 |
600X600X50 | 18 | 23 | 30 |
800X800X50 | 31.3 | 30 | 35 |
1000X1000X50 | 48 | 40 | 50 |
400X400X60 | 9.5 | 12 | 15 |
500X500X60 | 14.5 | 20 | 25 |
600X600X60 | 21.2 | 25 | 30 |
800X800X60 | 38.4 | 35 | 45 |
1000X1000X60 | 58.5 | 50 | 65 |
1200X1200X60 | 85 | 70 | 80 |
800X800X70 | 44 | 40 | 50 |
1000X1000X70 | 68.5 | 70 | 80 |
Abosn mobile outrigger pads :
1.Do not absorb moisture and will not swell up over time due to exposture outdoors.
2.Good impact intensity, do not decrease the impact strength over time.
3.Good breaking elongation, so they will bend but not break under extreme loads.
4.Non-stick surface, easy to clean.
5.Corrosion and chemical resistant.
6.Can work in bad weather conditions.
7.Durable lasting, low cost and efficient working compared to steel or aluminum.
8.Amazingly light compared to steel pads, and easier to mount and replace.
9.Will not rod, crack, splinter, much safer to use in the field compared to other wood based pads.
10.Lower maintenance cost.
11.Storage-Friendly.
more request , just contact with [email protected] freely .

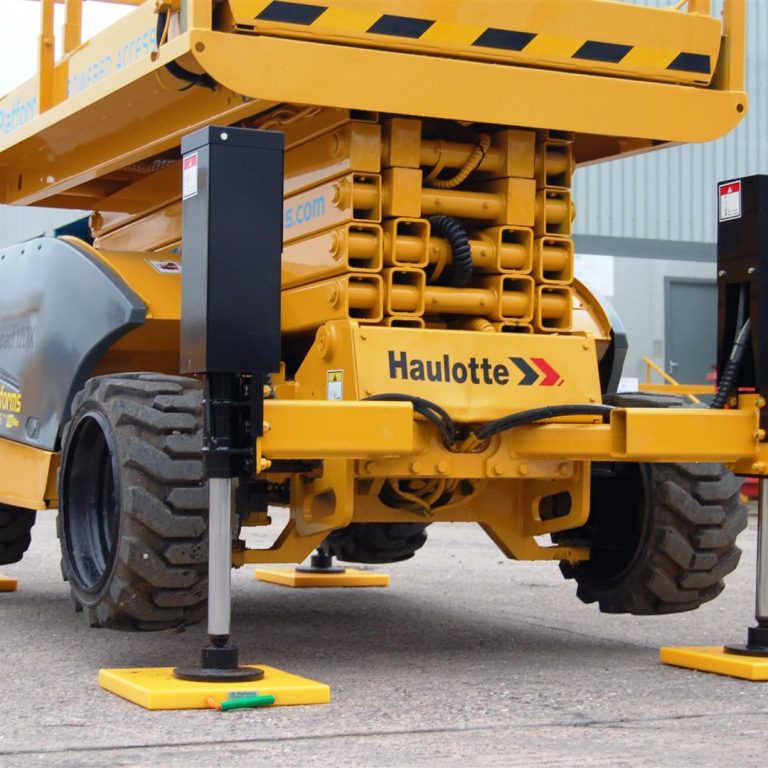

Our mobile outrigger pads put under the support-leg of Truck crane, crawler crane, rough crane, boom pump, concrete pump, fire truck, utility truck, tree trimmer, any type of aerial equipment, and so on. For making the machine work safely!
