ABOSN engineered plastic cribbing plates and outrigger pads are lightweight,strong,and solid desigened to support your crane ,and can be easily handled and positioned by one person or two.

It can not be warped like woop or corroded like steel.It won't break in the long guaranteed time and obviously could not attract thieves.

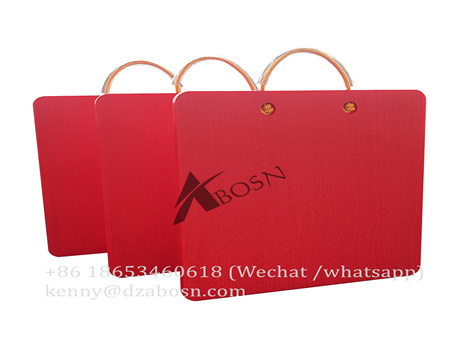

The portable rope is made of nylon, and the end of the portable rope is embedded in the body of the pad for easy carrying and arrangement.


The outrigger pads are supported by four corners, which can be used normally in harsh environments, and can be bent without breaking when overloaded.
The hand rope is made of nylon material, and the end of the hand rope is embedded in the body of the backing plate for easy carrying and arrangement.


Process composite UHMWPE outrigger pads are processed by CNC machining in the later stage of compression molding.

UHMWPE outrigger pads than normal outrigger pad compressive ability is stronger,more wear-resisting,and the price is low,service life is longer,not only save the cost,but also improve the efficiency so they are the best choice to replace the wood outrigger pads and become more and more popular.


Size ( square )Weight ( kg )Weight Load ( kg/pad )
400 x 400 x 40 mm
6.3 12,000
500 x 500 x 40 mm
9.915000
600 x 600 x 40 mm
14.220000
600 x 600 x 50 mm
18.025000
600 x 600 x 60 mm
21.230000
800 x 800 x 40 mm 25.335000
800 x 800 x 50 mm
31.340000
800 x 800 x 60 mm
38.445000
1000 x 1000 x 50 mm
48.050000
1000 x 1000 x 60 mm
58.070000
1200 x 1200 x 60 mm
85.0110000
1200 x 1200 x 80 mm
115.0120000
1200 x 1200 x 100 mm
141.0160000
1500 x 1500 x 100 mm
210.0200000
2000 x 1000 x 100 mm
196.0220000
3000 x 1000 x 100 mm
588.0300000

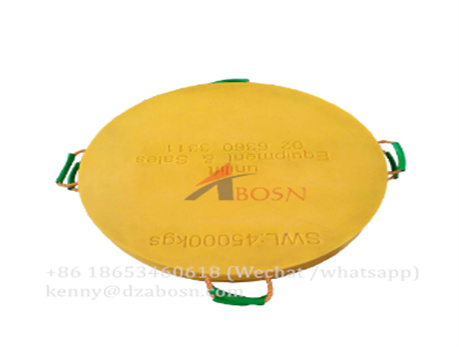

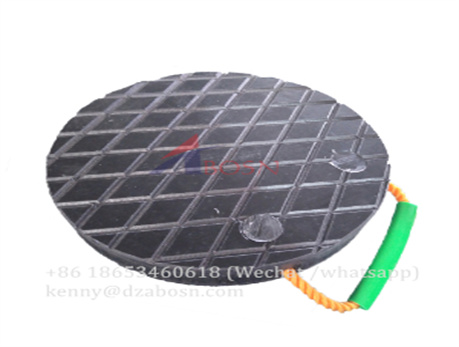

Size ( round )Weight ( kg ) Weight Load ( kg/pad)
800*50 mm
25.035000
800 x 60 mm
30.040000
900 x 50 mm
30.045000
900 x 60 mm
35.050000
1000 x 60 mm
40.060000
1000 x 80 mm
61.580000
1200 x 60 mm
66.490000
1200 x 80 mm
88.5120000
1500 x 100 mm
180.0180000

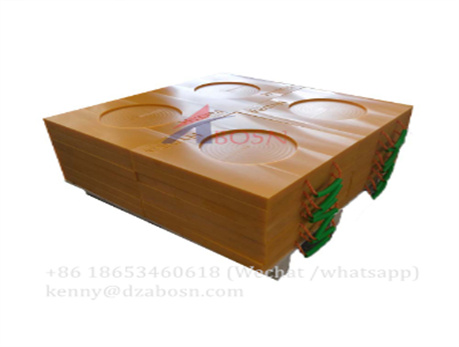

 Square / Roundness /Stackable jaking blocks

Crane Outrigger Stabilizer Pad

With nylon rope and rubber sleeve/With hole holder on top/With Steel Chain

Crane Outrigger Stabilizer Pad


1. No water absorption, long-term exposure to the sun will not expand and deformation;

2. Strong impact strength;

3. In the case of overload, rather than bending constantly;

4. Non-stick, easy to clean;

5. Chemical and corrosion resistance;

6. Normal operation under extremely harsh environment, temperature tolerance above 80 degrees below zero,
       169 degrees below zero;

7. Lighter than steel plate, easy to operate by one person;

8. It will not break due to corrosion, and it is much safer than the wooden plate;

9. No maintenance required;

10. Environmental protection can be recycled by pollution-free manufacturers

Our UHMWPE crane outrigger pad put under the support-leg Truck Crane, Crawler Crane, Rough Crane, Boom Pump, Concrete Pump, Fire Truck, Utility Truck, Tree Trimmer, Tracked Aerial Lifts, Any type of Aerial Equipment and so on, for making the machine work safely.
