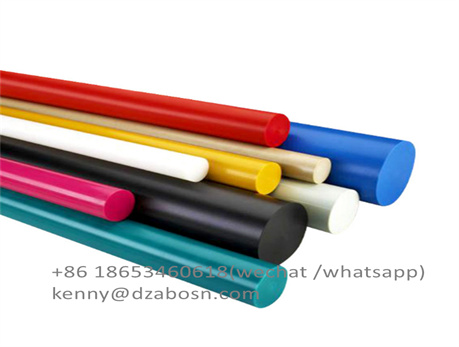

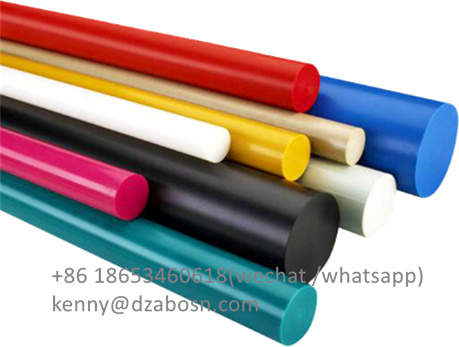

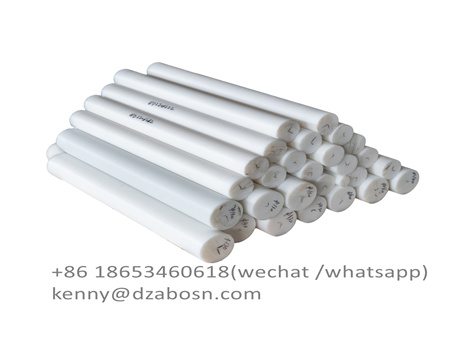

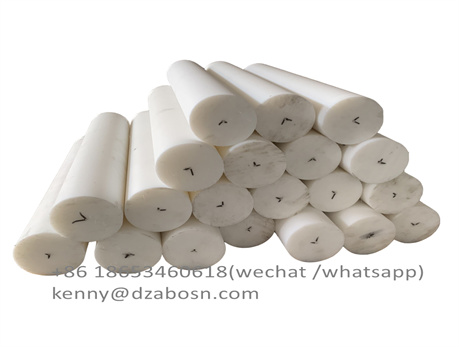

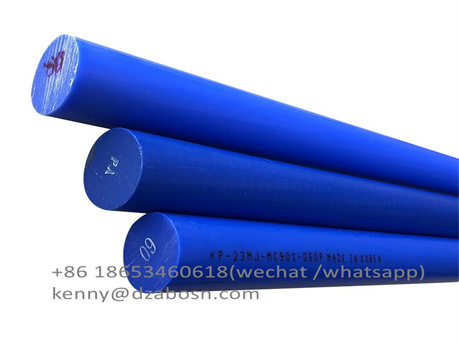

Description of natural nylon rod
Specifications:
(Thickness)6mm-100mm,(length and width) 1000*1200mm, 1200*2600mm, 1100*3100mm
(Thickness)10mm-200mm,(length and width)1000*1000mm,600*1200mm
Other sizes can be customized.
Color: Natural color, yellow, blue, black, green.
Grade:
A (Density 1.18-1.2 g/cm 3 )
B (Density 1.2-1.25 g/cm 3 )
C (Density 1.3-1.5 g/cm 3 )
MC Nylon sheet (PA6) also named Monomer Casting Nylon is a engineering plastic sheet which is widely
usded in all industrial area. It’s light, high strength, wear-resisting, insulating and so on. So it is mainly
used as gears and parts, chemical machinery, electric parts, automobile parts, chemical equipment, etc.
Custom CNC Machining Parts Services
Quotation：According to your drawing(size,material,thickness,processing content,and required technology,etc)
Processing equipment：CNC lathe, CNC milling machine, drilling machine
Core machine, Cutting machine
Accept drawings：CAD (DXE.DWG), PDF, Pro/Engineer
Delivery time：3-5 days for samples, 2-3 weeks for mass production
1) Used in the mechanical performance requirements of a high motor, electrical equipment and
insulating structural parts.
2) ICT, ITE rule the processing of the insulation parts, test fixtures, silicon rubber keypads mold.
3) Fixture plate, mold plywood, countertops grinding plate, packaging machines, comb, etc.
Technical of natural nylon rod
Density (g/cm3) 1.4 Friction coefficient 0.6
Temperature (continuous) 55 Rockwell hardness 82
Soft temperature 120 Anti-electric Strength(KV/mm) 20-40
Glass transition temperature 87 Volume Resistance(Ω.cm) ≥1015
Linear thermal expansion coefficient 80X10-6 Surface Resistivity ≥1013
Flammability V-O Tensile modulus of elasticity(Mpa) 3000
