UHMWPE Impact bar with Rubber production details :
Standard 1200mm (49") and 1500mm (59") long x 100mm (4") wide
Available in 55mm (2 1/8") and 75mm (3") high
Used widely in the bulk handling industry, from quarrying to mining, impact bars are an integral part of Conveyor Belt Support and Spillage Control Systems at conveyor load and transfer points. Impact bars, unlike conveyor rollers, which eventually break or seize and act like a brake, support and absorb the impact of heavy, often sharp material, not the conveyor belt; the low friction polyethylene surface allows the conveyor belt to continue moving freely, preventing unnecessary damage to the conveyor belt or drive motor.

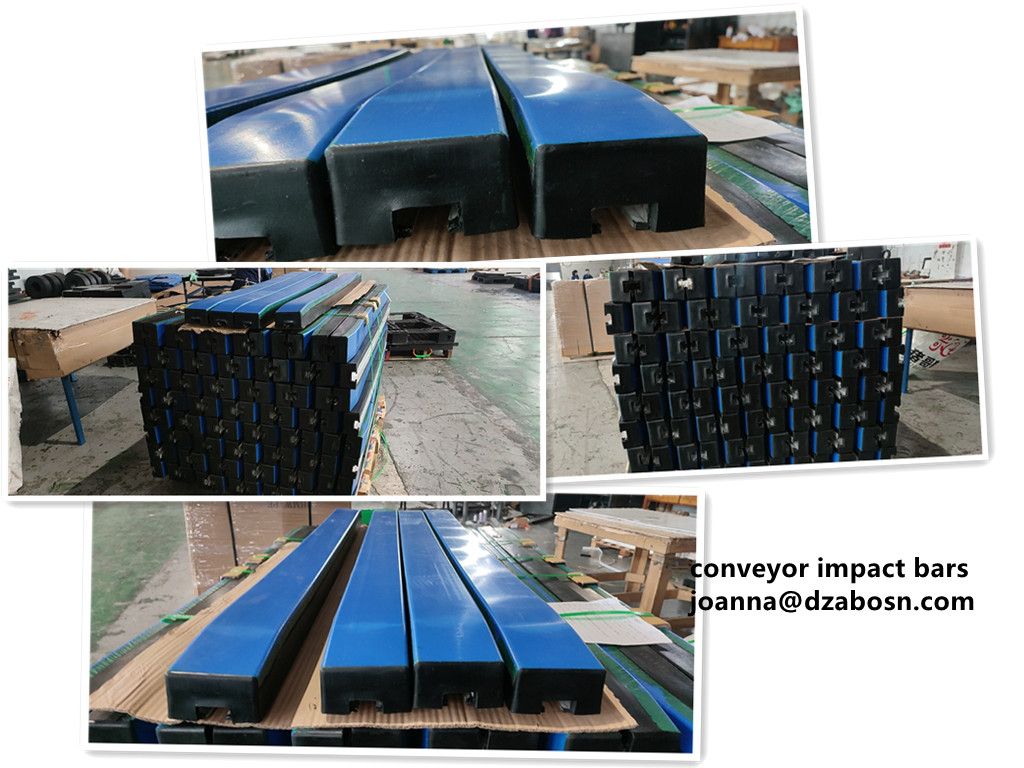

UHMWPE conveyor Impact bar
1200X100X75MM /55MM
1220X100X75MM /55MM
1400X100X75MM/55MM
1500X100X75MM/55MM
1524X100X75MM /55MM
1600X100X75MM/55MM
The impact bar is a combination of three different layers. The top layer is made of UHMWPE for smooth movement of belt, thanks to its low dynamic co-efficient of friction. The middle layer is of rubber to cushion the impact load while the lower layer is made of aluminum, which acts as a fastening device with the main support frame or cradle. The cradlers are custom built to suit specific applications. The installation of impact bar is made is such a way that the belt is not in touch with the bar when running empty. The belt comes in contact with the bar only when it is running under loaded condition.
