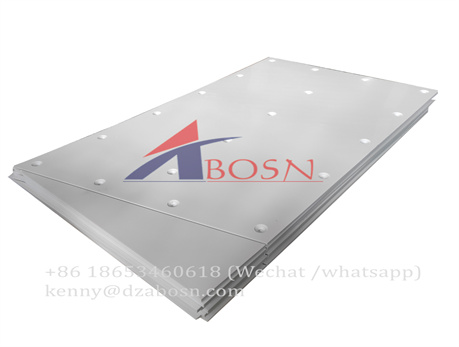

PE 1000 2000 Uhmwpe Lining

Ultra High Molecular Weight Polyethylene (PE‐UHMW) occupies the extreme end of the polyethylene performance spectrum. With a molecular weight ranging from 3 to 7 million g/mol, PE‐UHMW linear polymer chains are 10 times longer than conventional High Density Polyethylene (HDPE).

This unique molecular structure gives PE‐UHMW it’s exceptional properties like below:

Density   : 0.92 – 0.96 g/cm3

Tensile strength at yield : 15 – 20 Mpa

Notched impact strength : 80 – 170 kJ/m2

Abrasion resistance (sand slurry test) : 70 – 120 %

Shore hardness D: 60 – 63o

Max. cont. temperature: 80°C

Abosn UHMWPE  properties have meet the full range of material flow,friction and wear challenge associated with bulk materials.

Material :PE500,PE1000,PE2000

1.Size:

2000x1000x(6-300)mm 2250x1000x(6-300)mm

2300x1200x(6-300)mm2500x1300x(6-300)mm

3050x1220x(6-300)mm3000x1500x(6-300)mm

4500x2000x(6-200)mm4700x1200x(6-150)mm

5000x1300x(6-180)mm6100x1800x(6-200)mm

Any size within the standard size is available

2.Color:

Black,Blue,Yellow,Green,White,Red,Orange ,any other color will be available
