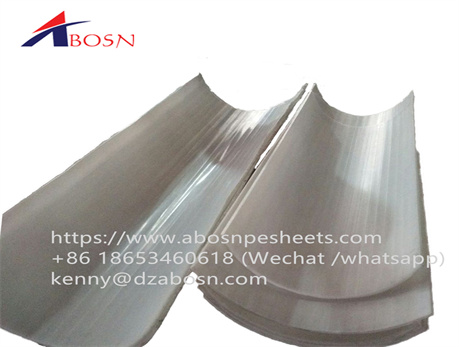

UHMWPE Non-stick Slideway Chute Liner

Ultra High Molecular Weight Polyethylene (PE‐UHMW) occupies the extreme end of the polyethylene performance spectrum. With a molecular weight ranging from 3 to 7 million g/mol, PE‐UHMW linear polymer chains are 10 times longer than conventional High Density Polyethylene (HDPE).

This unique molecular structure gives PE‐UHMW it’s exceptional properties like below:

Density   : 0.92 – 0.96 g/cm3

Tensile strength at yield : 15 – 20 Mpa

Notched impact strength : 80 – 170 kJ/m2

Abrasion resistance (sand slurry test) : 70 – 120 %

Shore hardness D: 60 – 63o

Max. cont. temperature: 80°C

Abosn UHMWPE  properties have meet the full range of material flow,friction and wear challenge associated with bulk materials.

Material :PE500,PE1000,PE2000

1.Size:

2000x1000x(6-300)mm 2250x1000x(6-300)mm

2300x1200x(6-300)mm2500x1300x(6-300)mm

3050x1220x(6-300)mm3000x1500x(6-300)mm

4500x2000x(6-200)mm4700x1200x(6-150)mm

5000x1300x(6-180)mm6100x1800x(6-200)mm

Any size within the standard size is available

2.Color:

Black,Blue,Yellow,Green,White,Red,Orange ,any other color will be available

We can provide the whole board, you could go back and cut it by ourselves, there will be no waste. Can also provide processed products, according to the drawings to produce a variety of shapes, drilling. Machining accuracy:+-0.5mm.

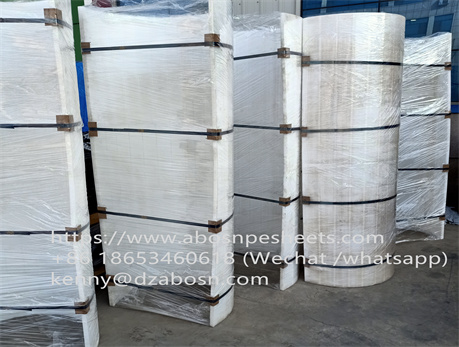

The size of whole board:

5040x1340mm

4730x1240mm

3050x1230mm

6050x1830mm

6050x2000mm

3050x1550mm

4550x2000mm

3050x3050mm

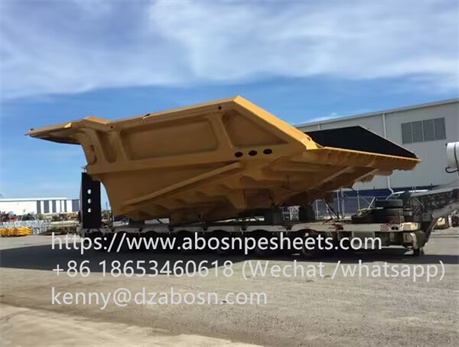

Thickness can be 8-100mm, for truck liner, 8-12mm thickness is enough.
